I stripped the engine completely, sent the block away to a specialist to be acid cleaned, honed, decked. I threw away every part that I removed and bought a load of new parts. Painted the engine block gold and then went on to assemble the engine…
Click the image to enlarge..

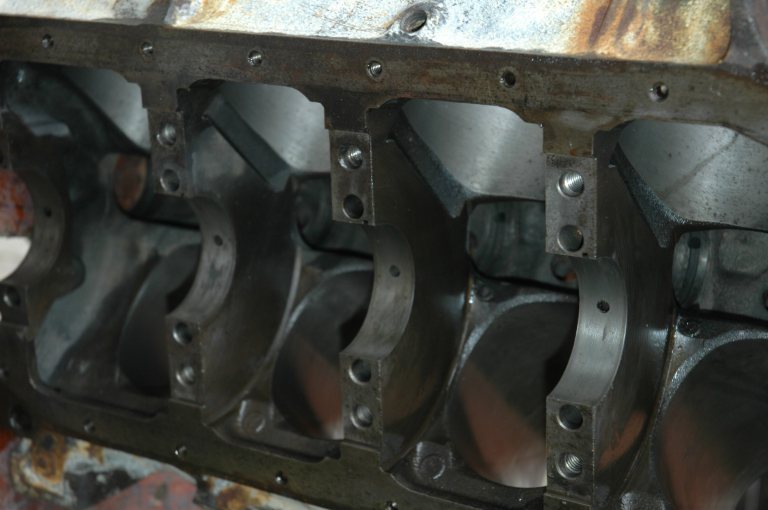

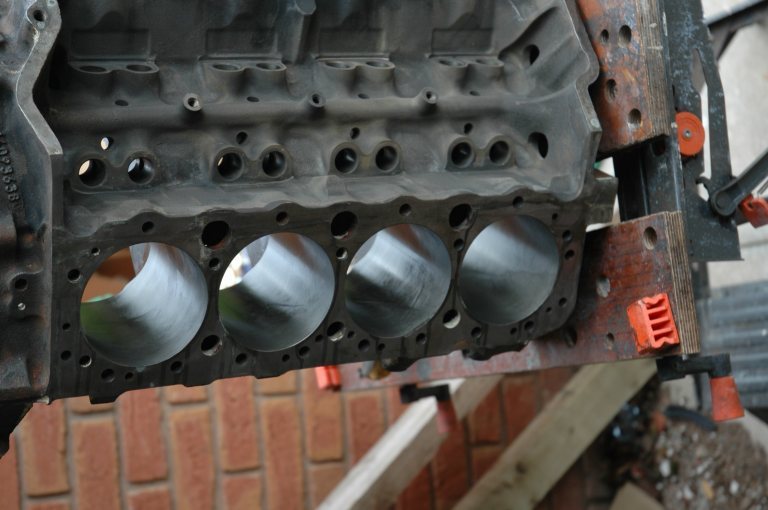

Stripped and cleaned engine
Stripped and cleaned engine
Stripped and cleaned engine

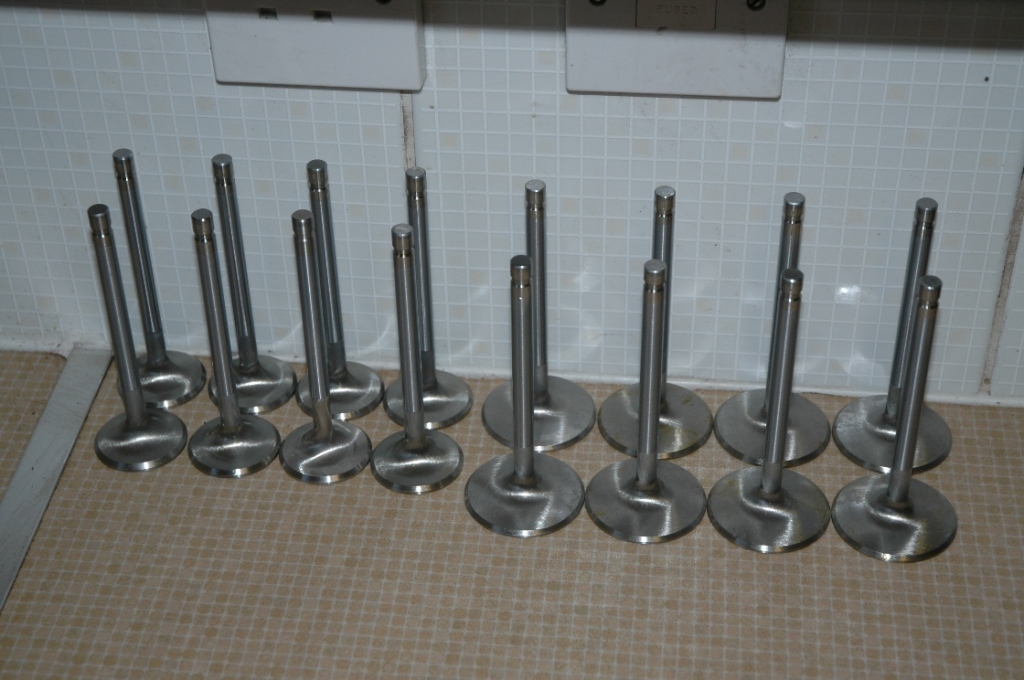

New Valves
New Valve guides

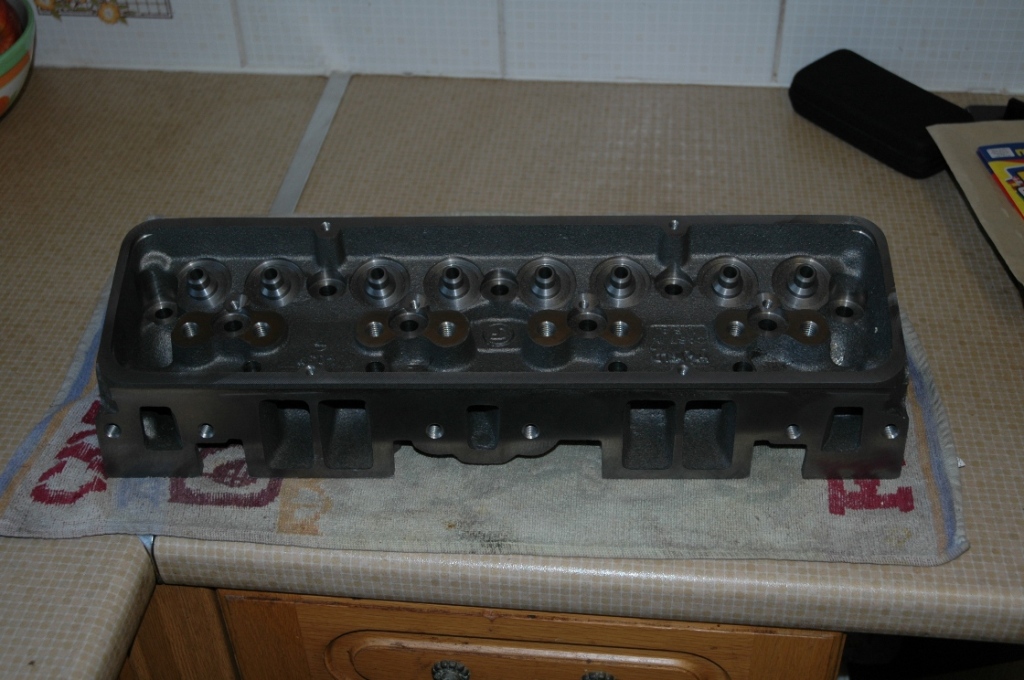

New bare head (There are 2 of these)
Head with valves installed
Head with valves installed

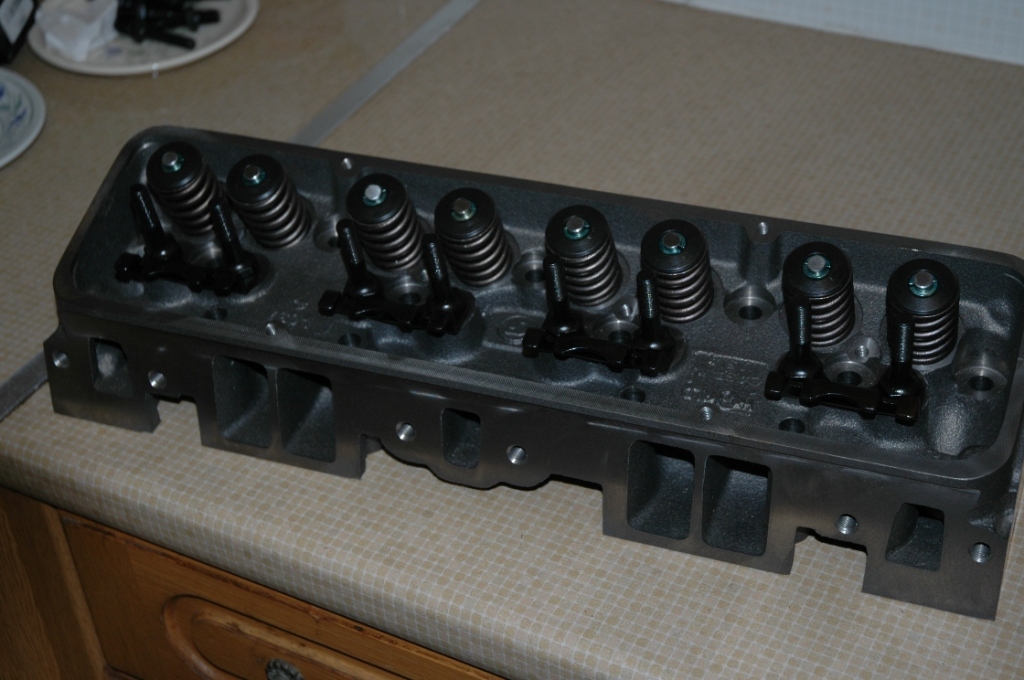

Head with valve springs installed

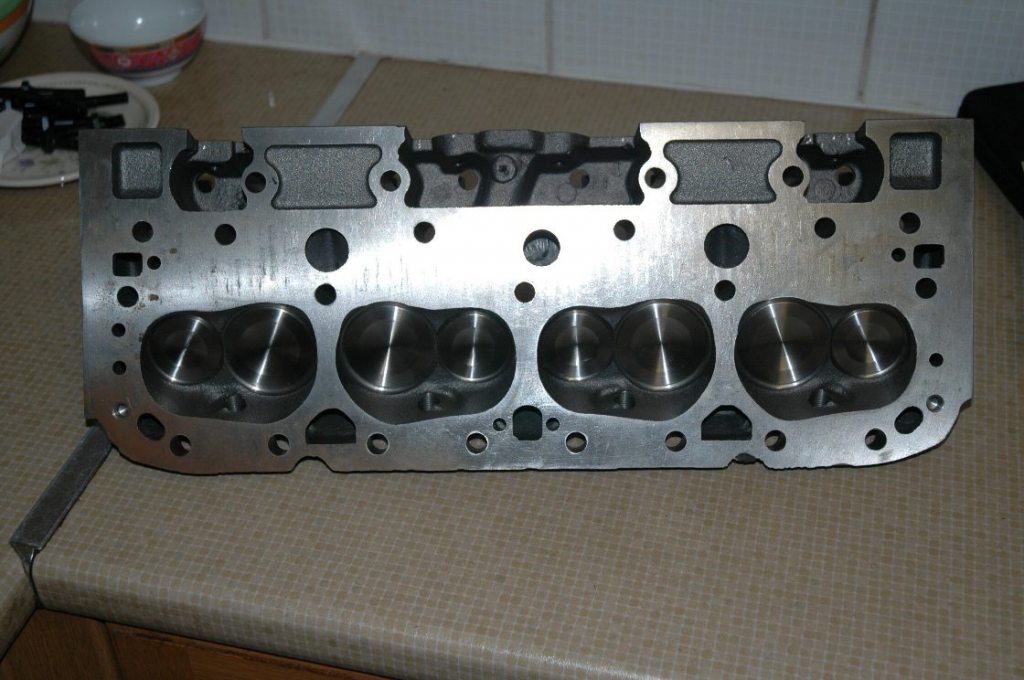

Bottom of head with valves installed

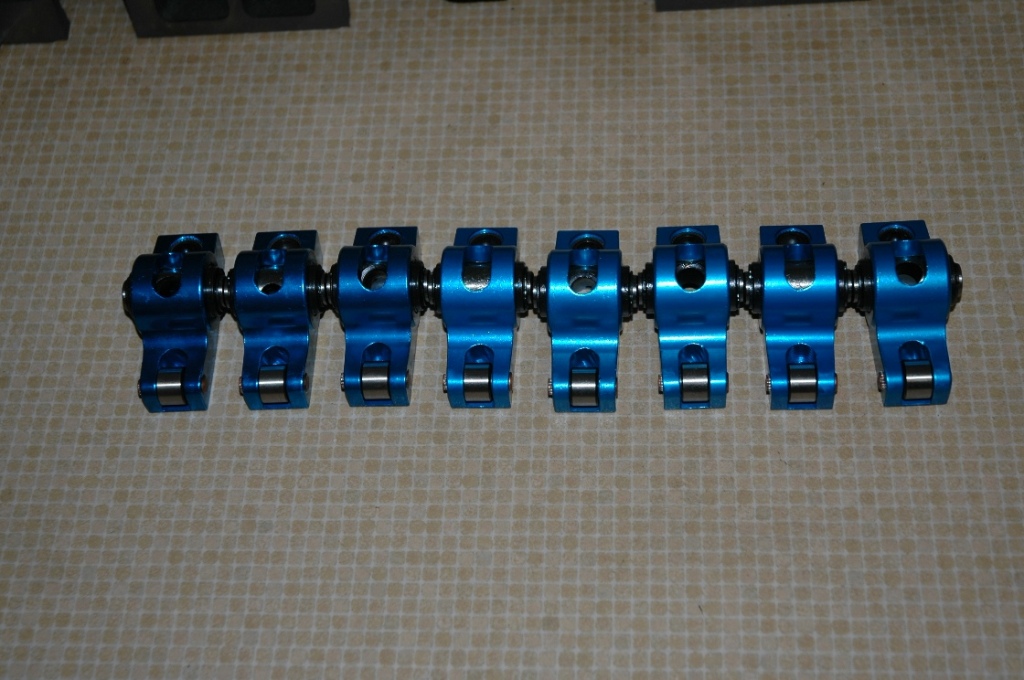

New rockers need to be installed

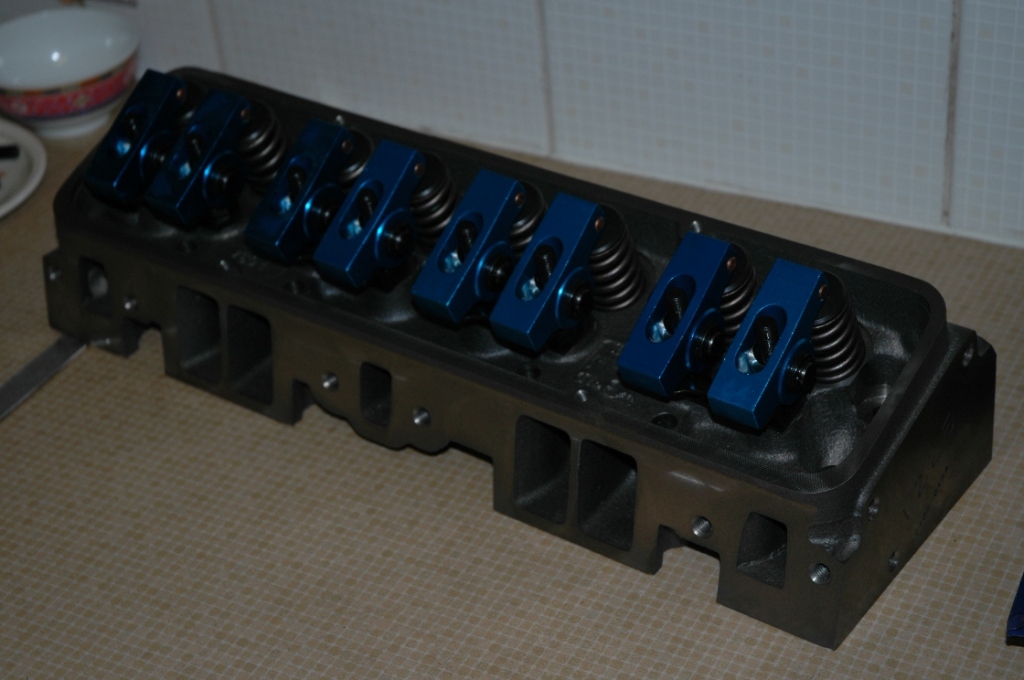

New rockers installed

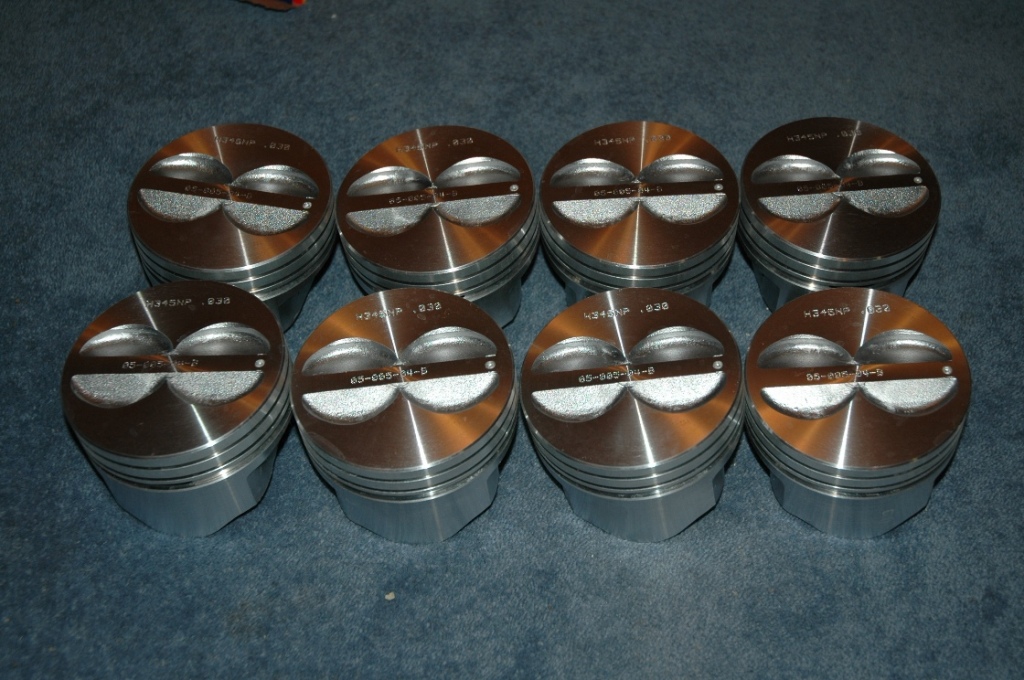

New high compression pistons
New piston push rods

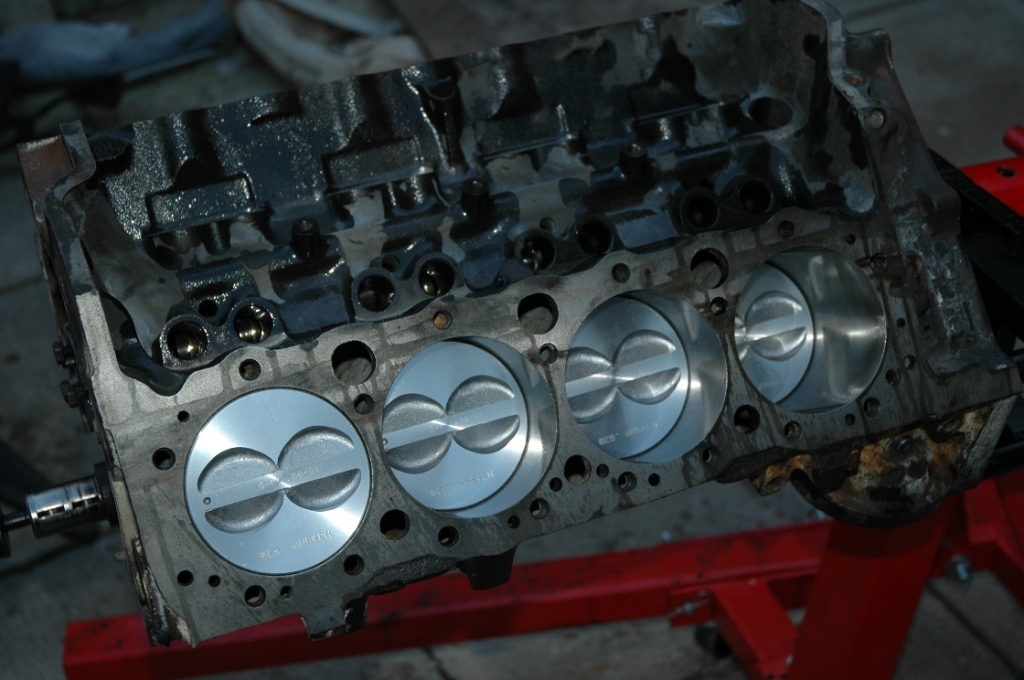

Pistons installed in the block

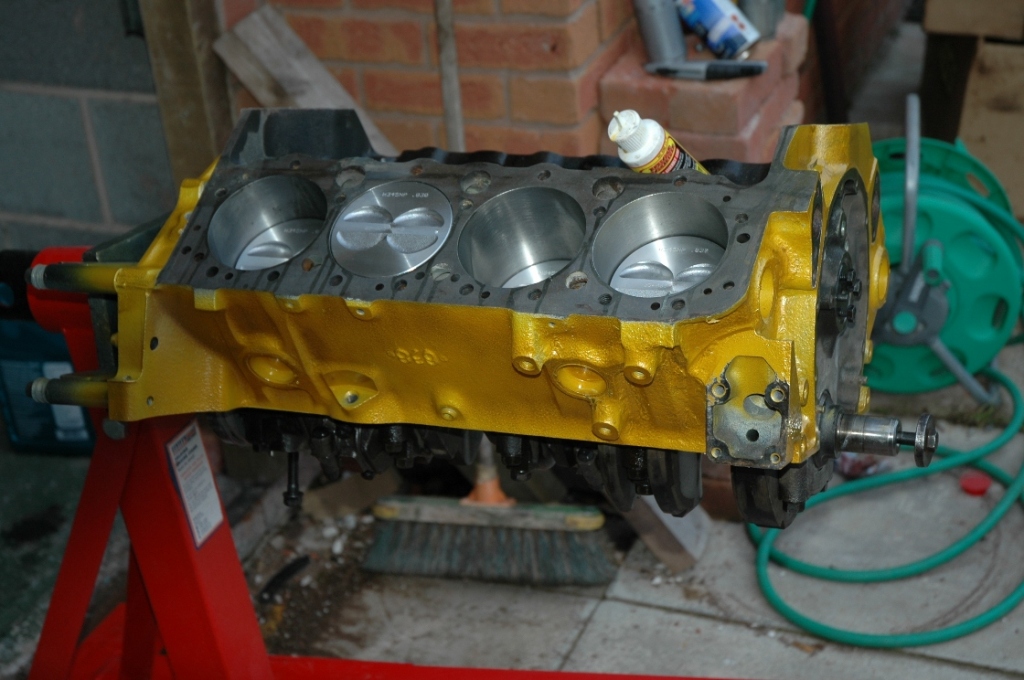

Pistons installed in the block, and block now painted

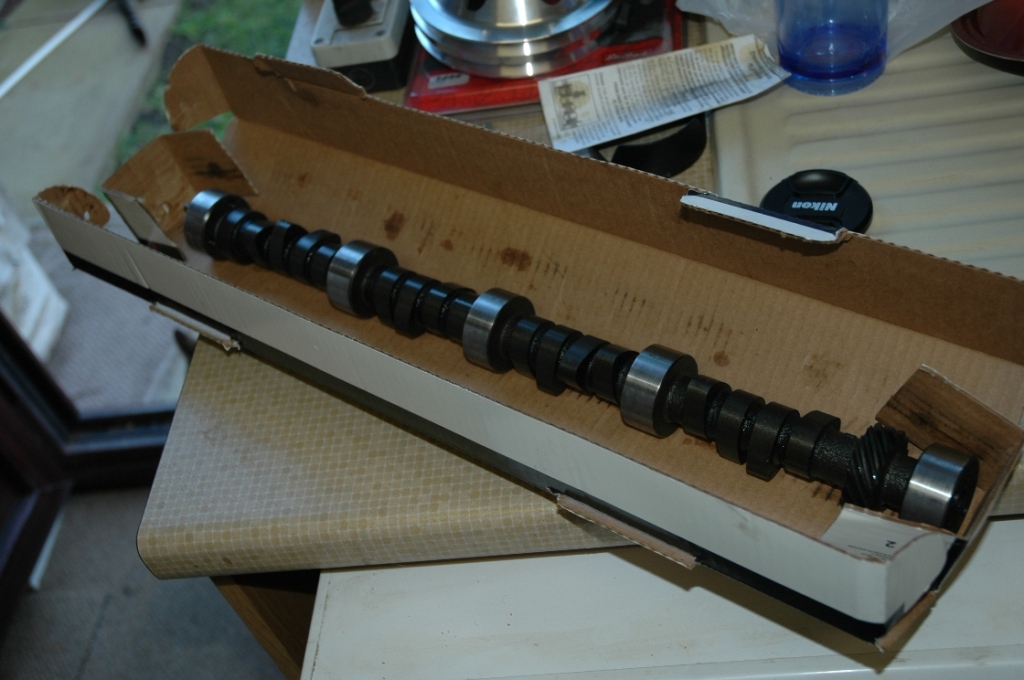

New cam Shaft

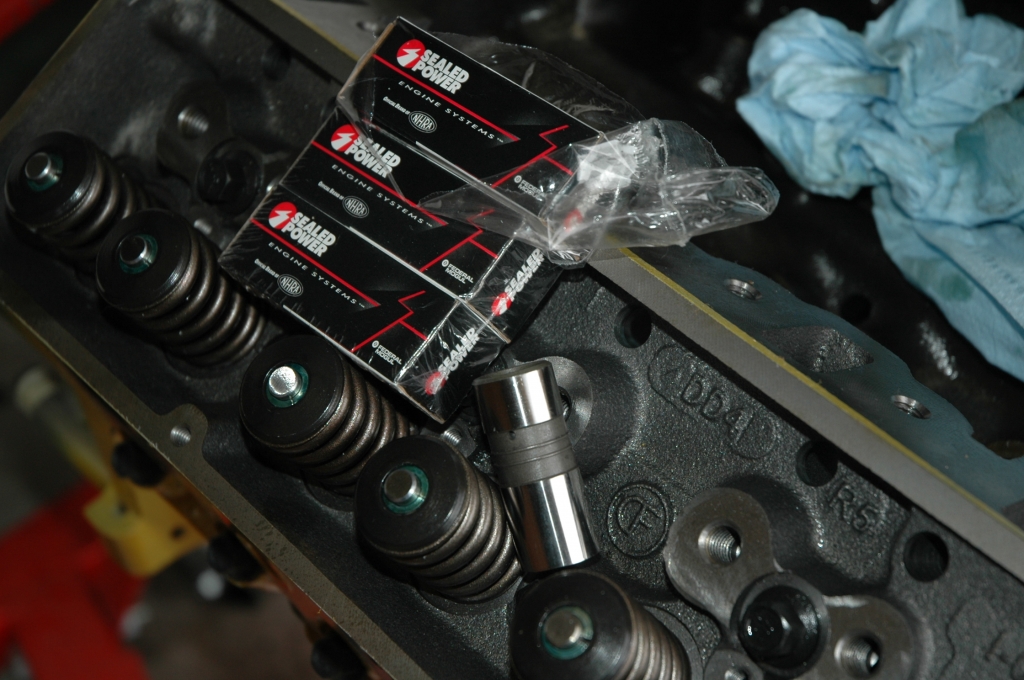

New hydraulic lifters

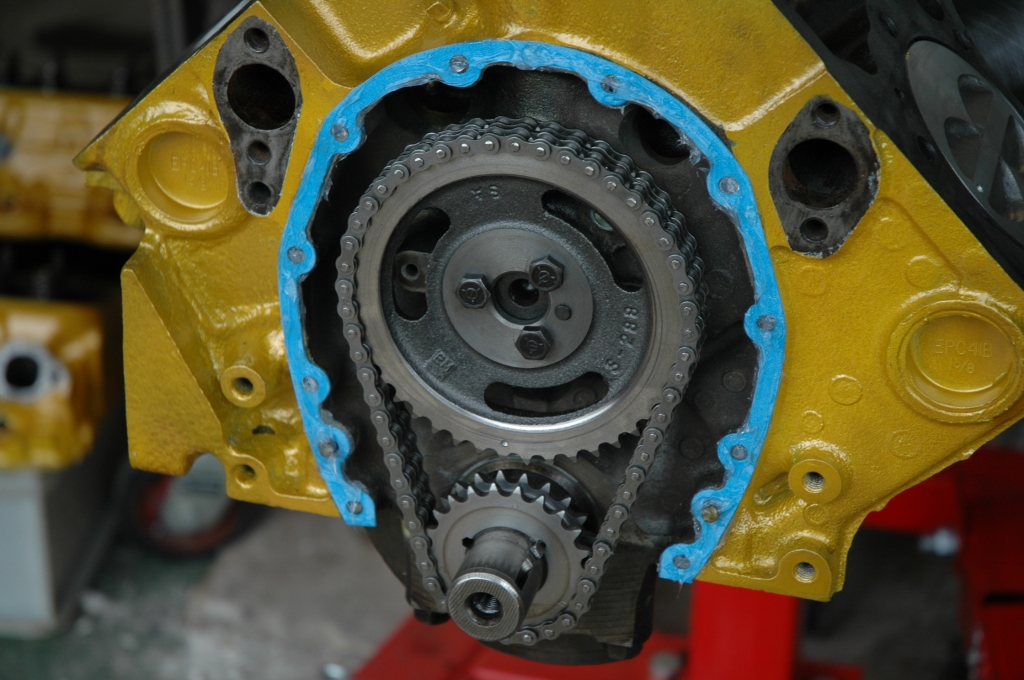

Water pump gasket, also cam shaft installed behind the top cog wheel. Drive chain also installed, connecting the Crank Shaft and Cam Shaft

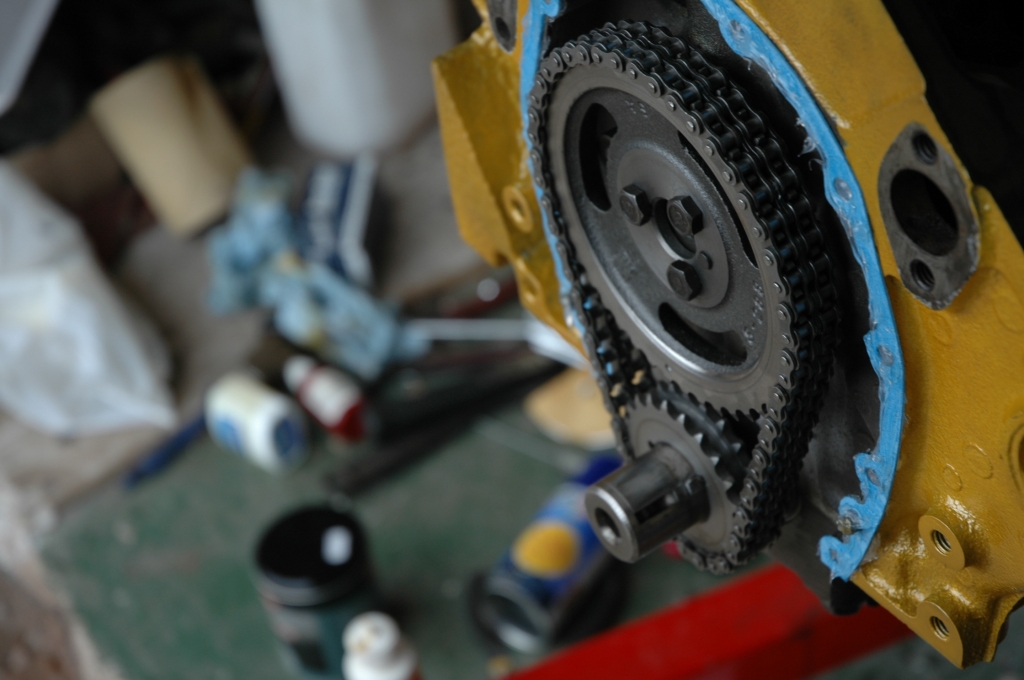

Water pump gasket, also cam shaft installed behind the top cog wheel. Drive chain also installed, connecting the Crank Shaft and Cam Shaft

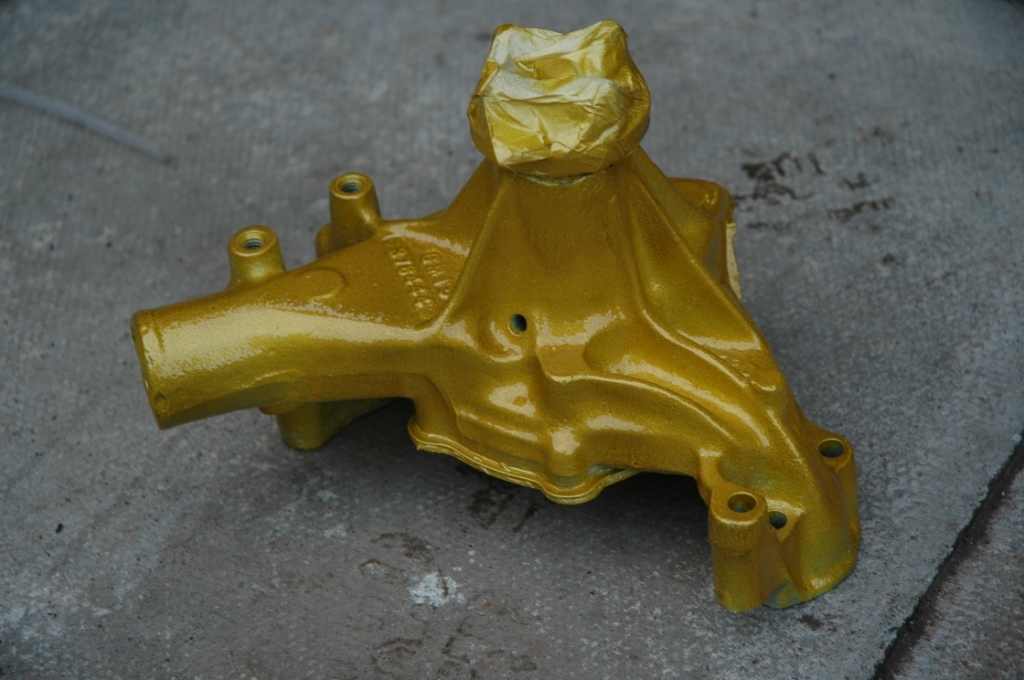

New Water Pump - Painted to match engine block

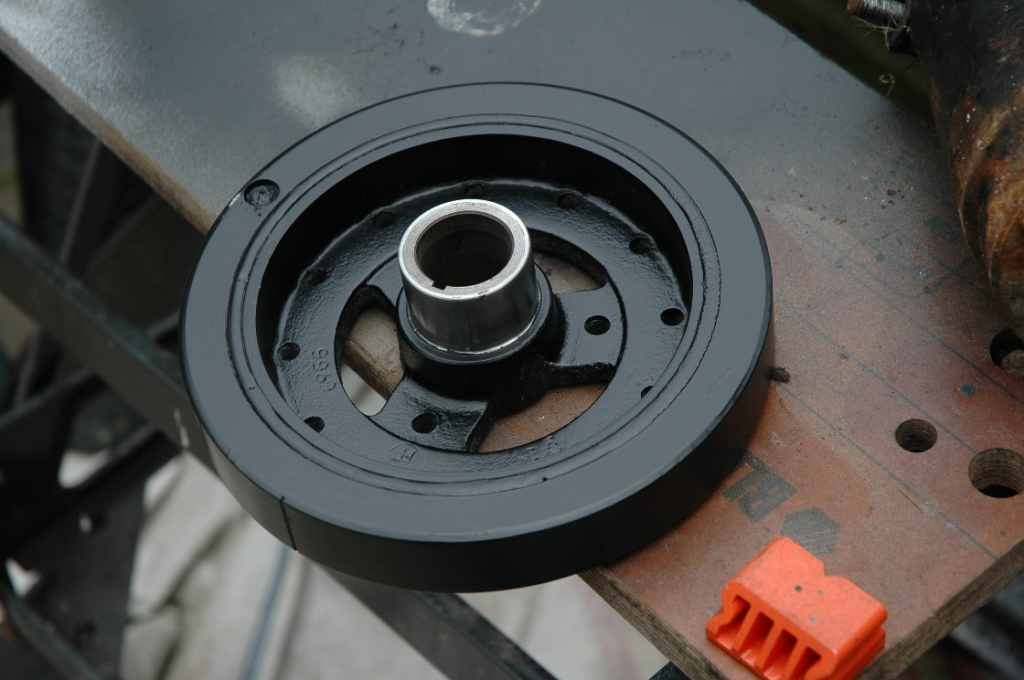

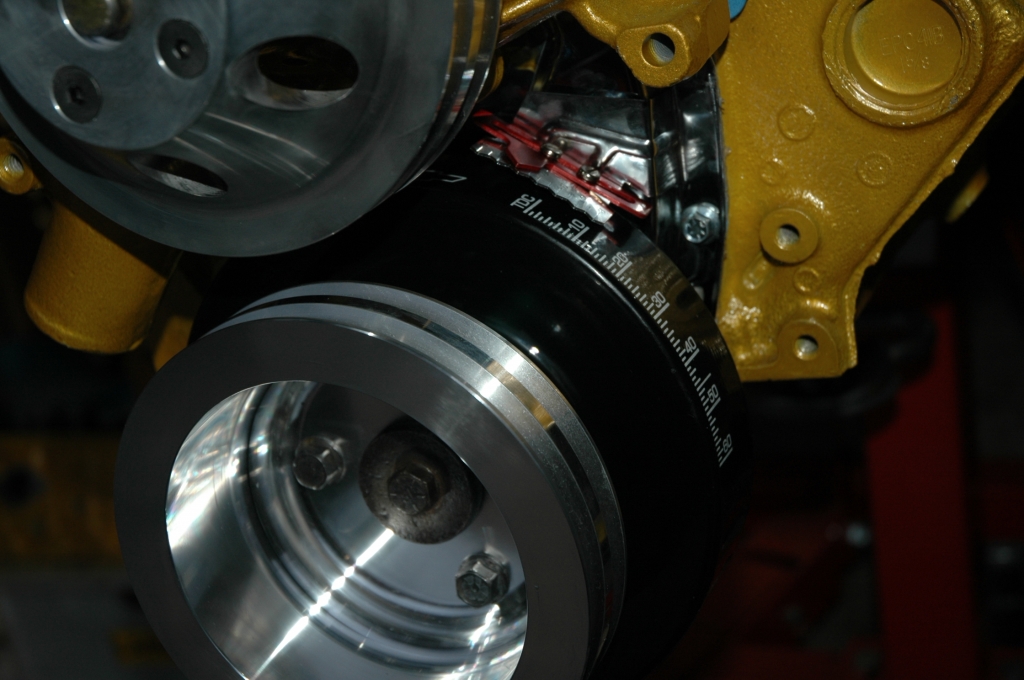

New harmonic balancer

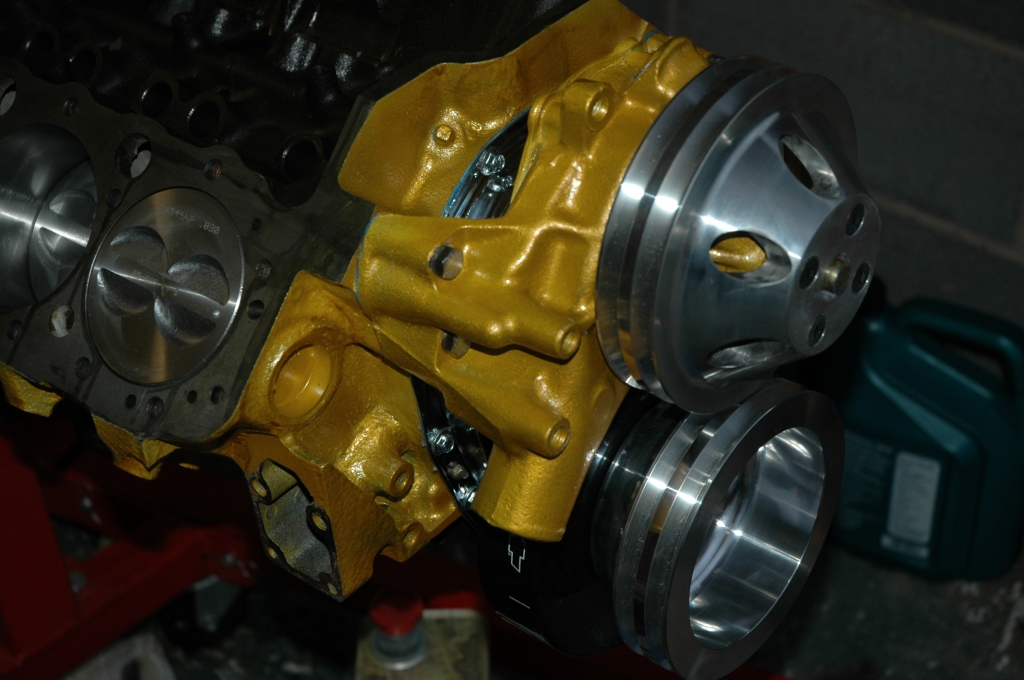

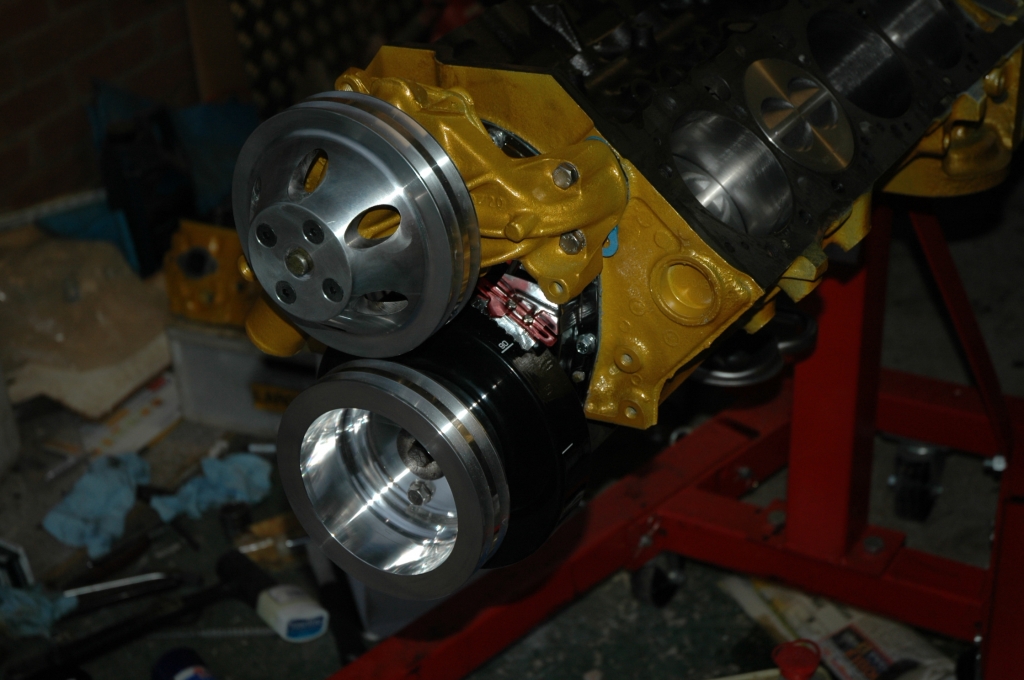

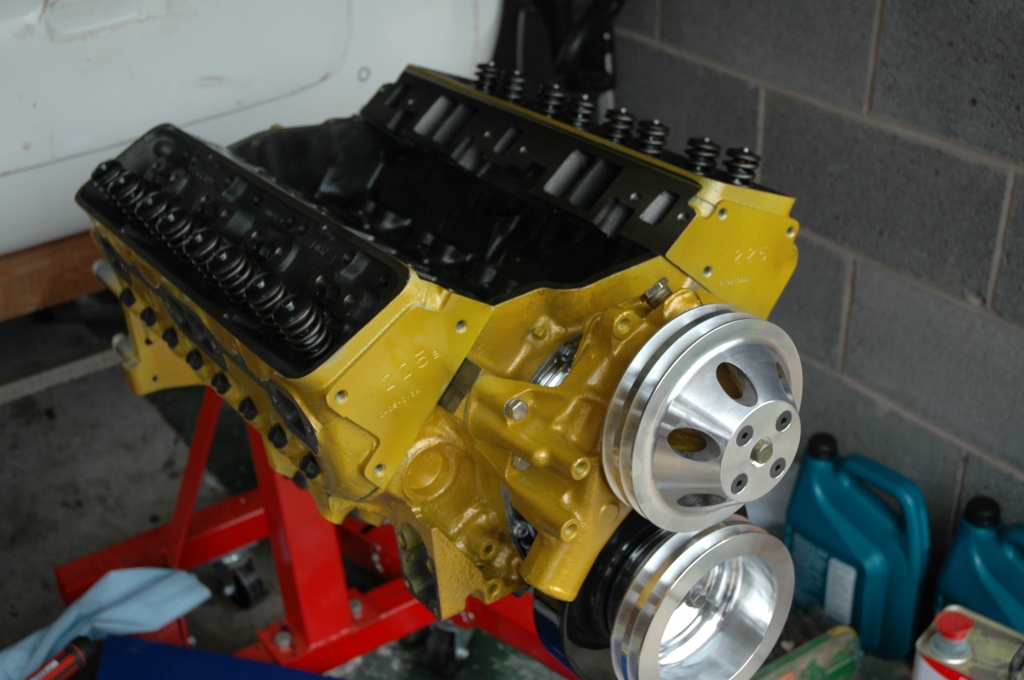

Top and bottom belt pulleys installed
Top and bottom belt pulleys installed
Top and bottom belt pulleys installed

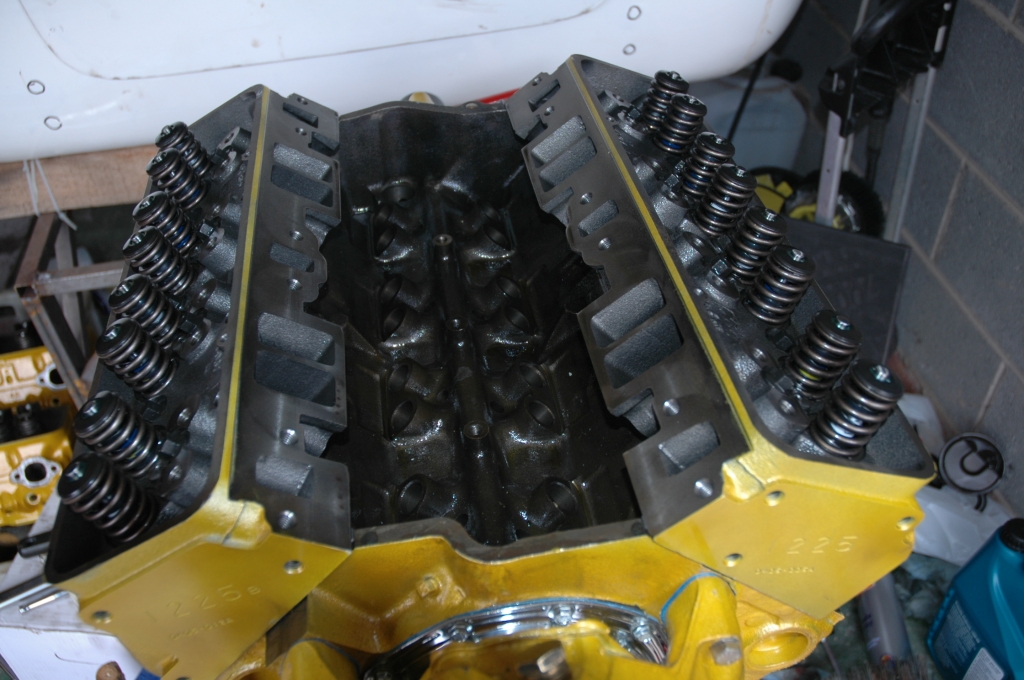

Heads installed on block
Heads installed on block

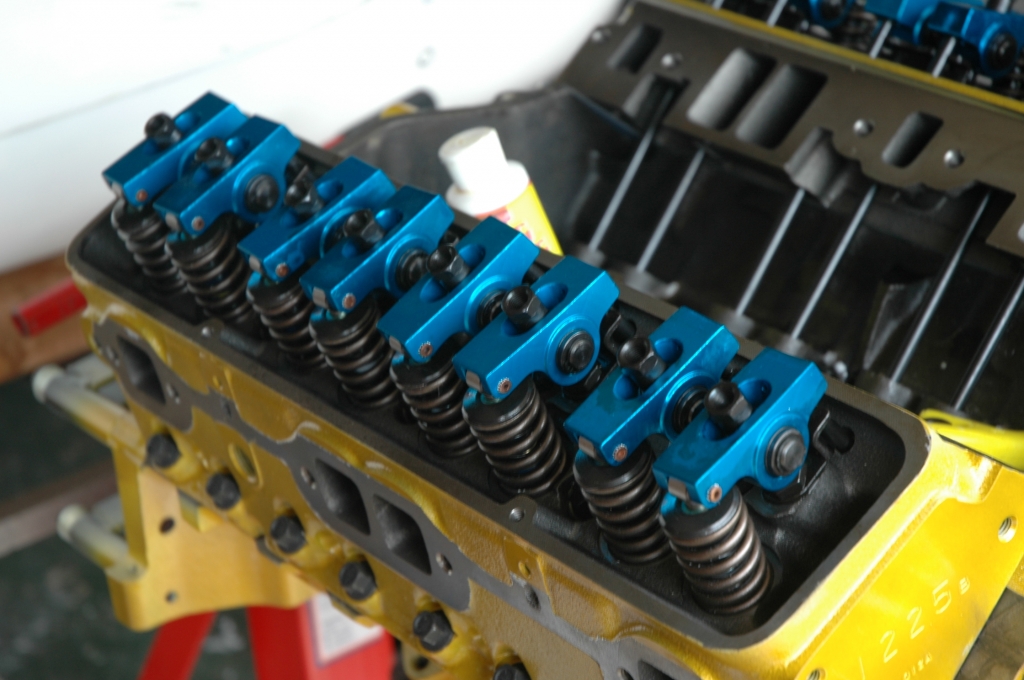

Heads installed on block with roller rockers installed
Heads installed on block with roller rockers installed

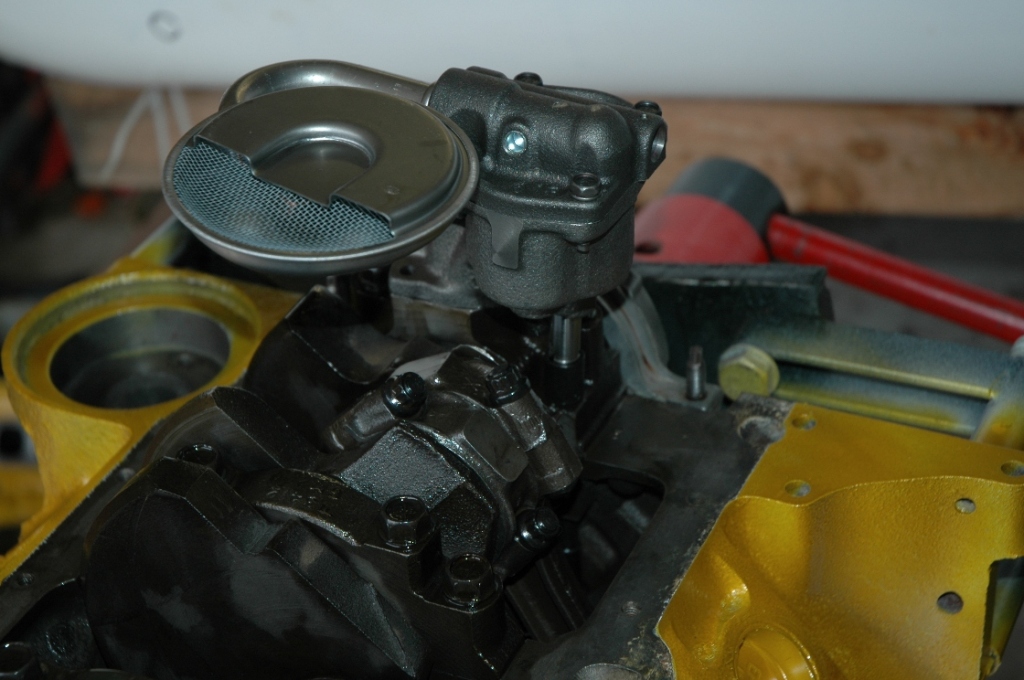

Upside down, new oil pickup installed

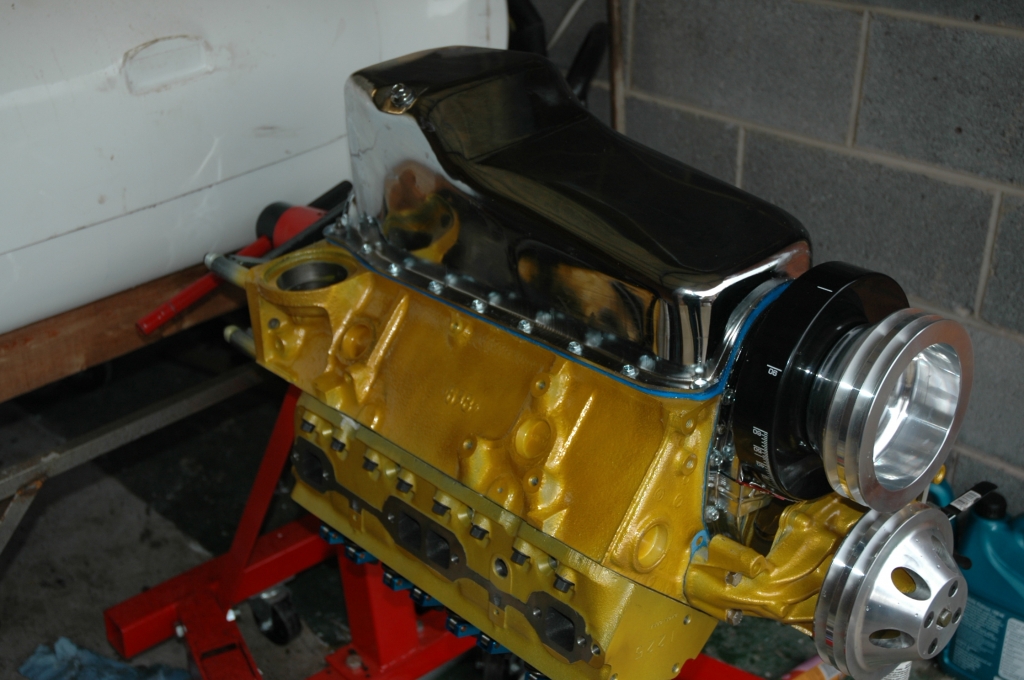

Upside down with oil sump installed

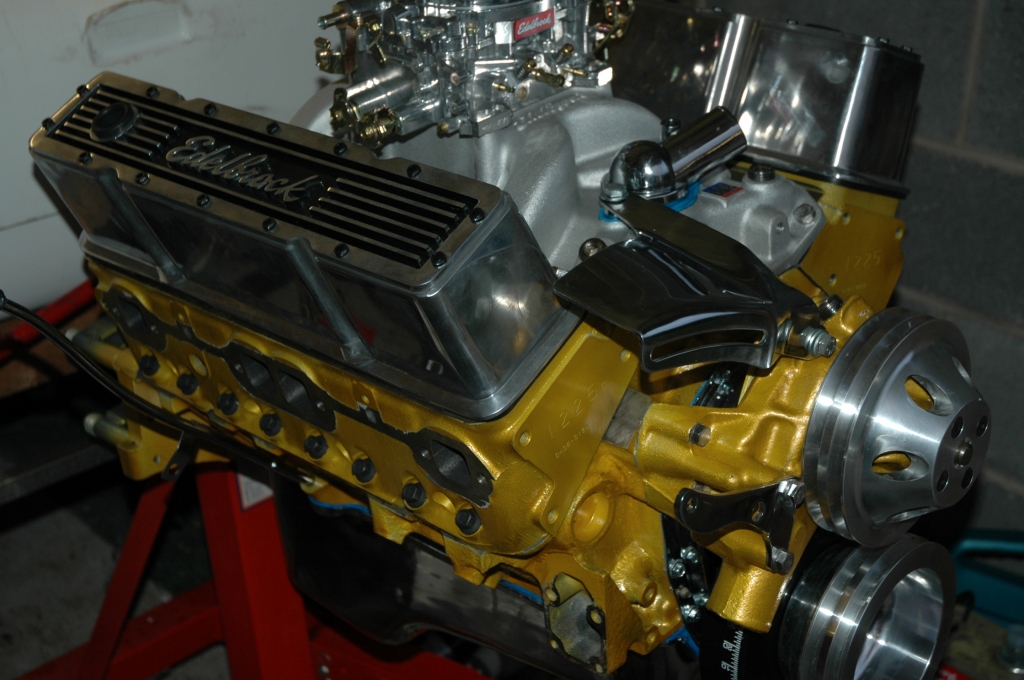

Rocker covers installed

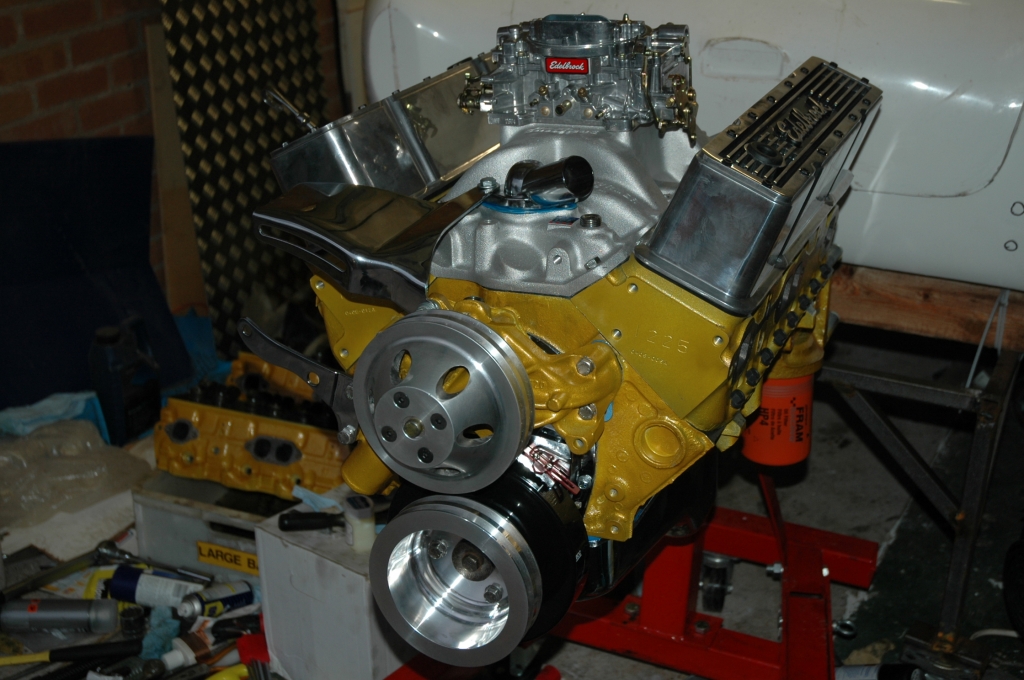

Inlet manifold and carburetors installed

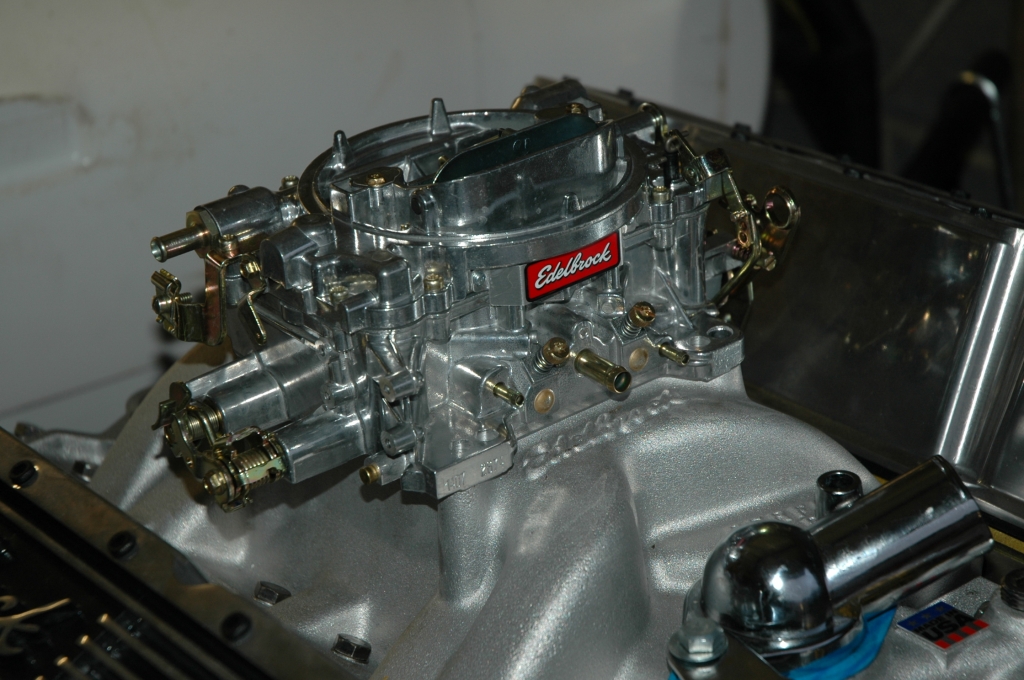

New 4 pot Edelbrock carbs

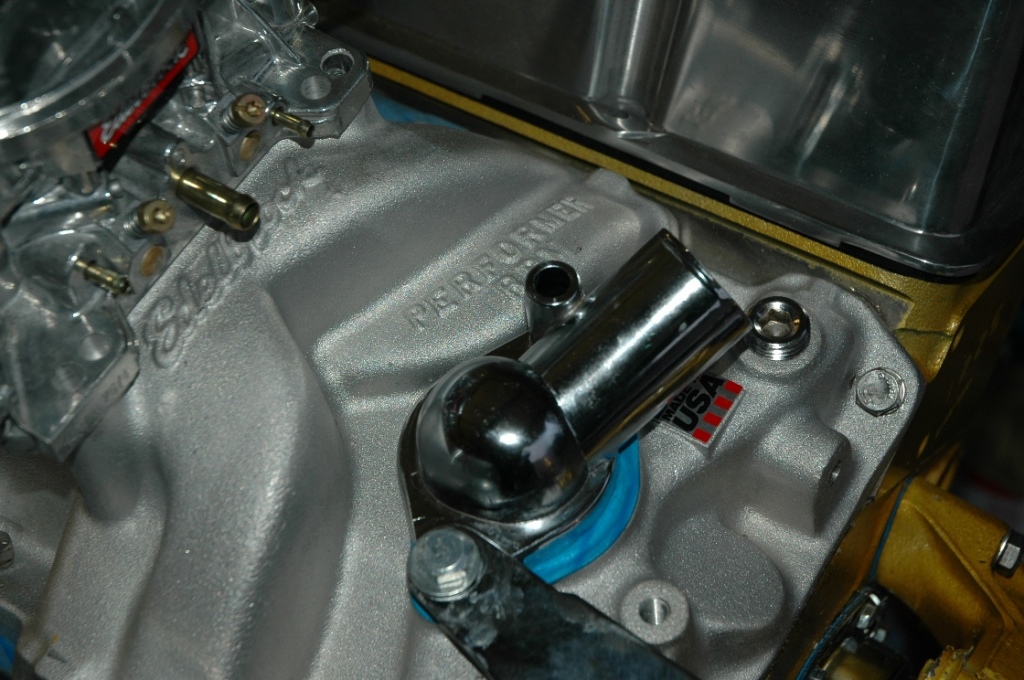

New thermostat for water pipe

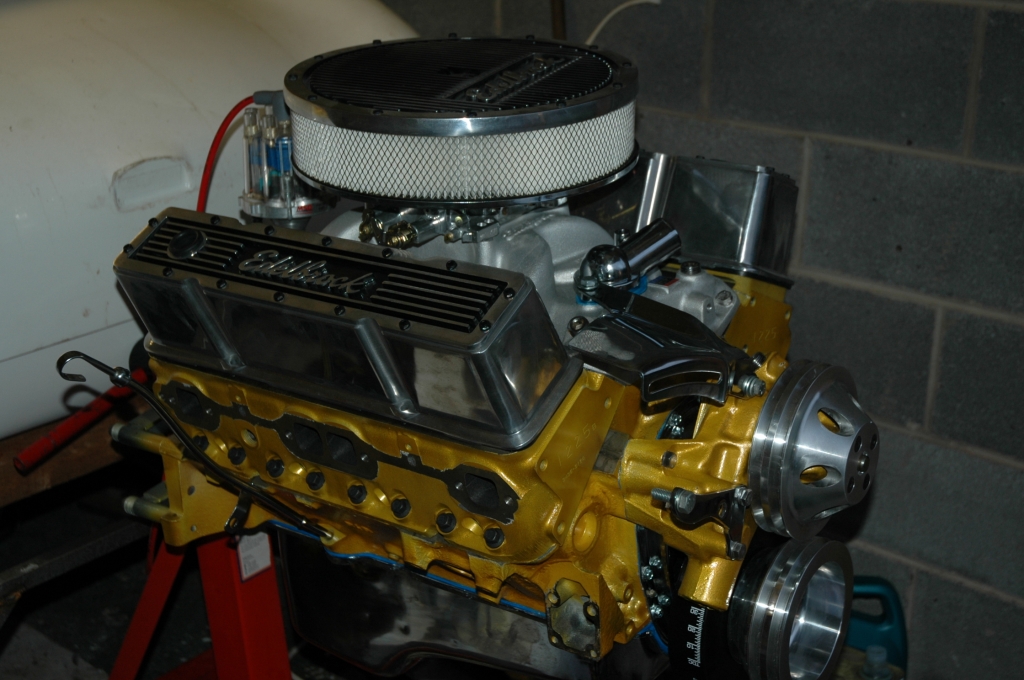

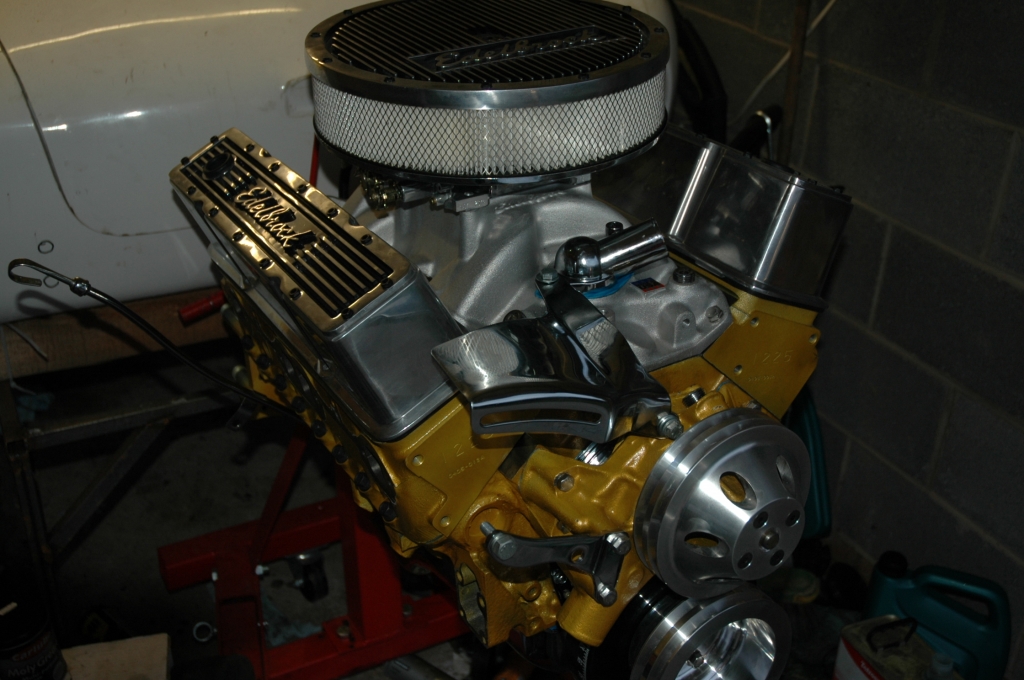

Air Filter installed

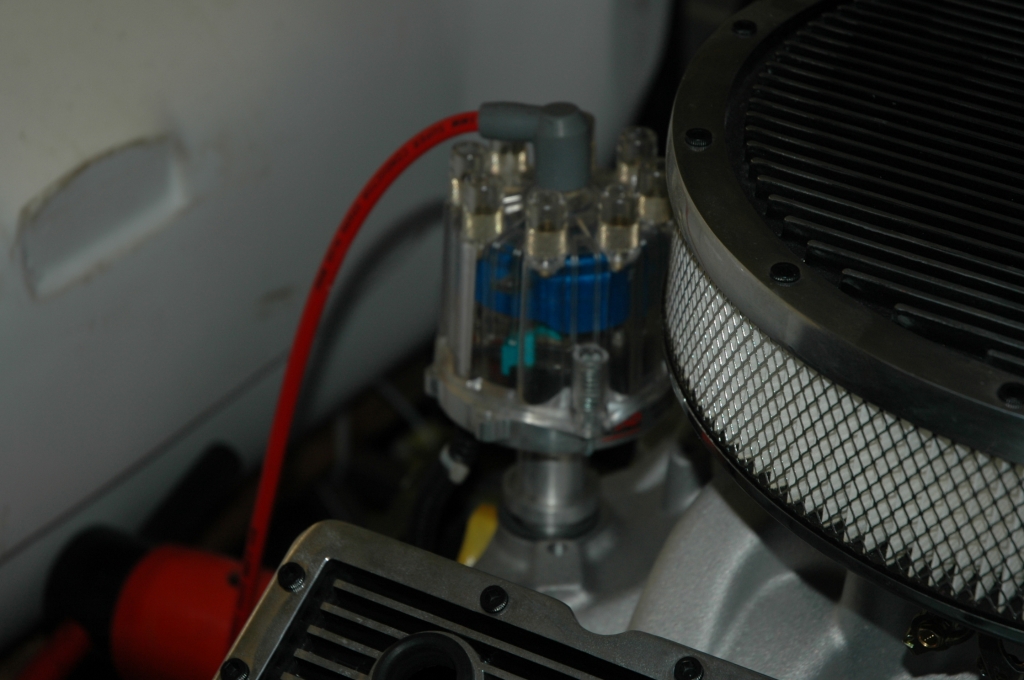

Clear distributor cap (Watch it all spinning)
Looking good.!!

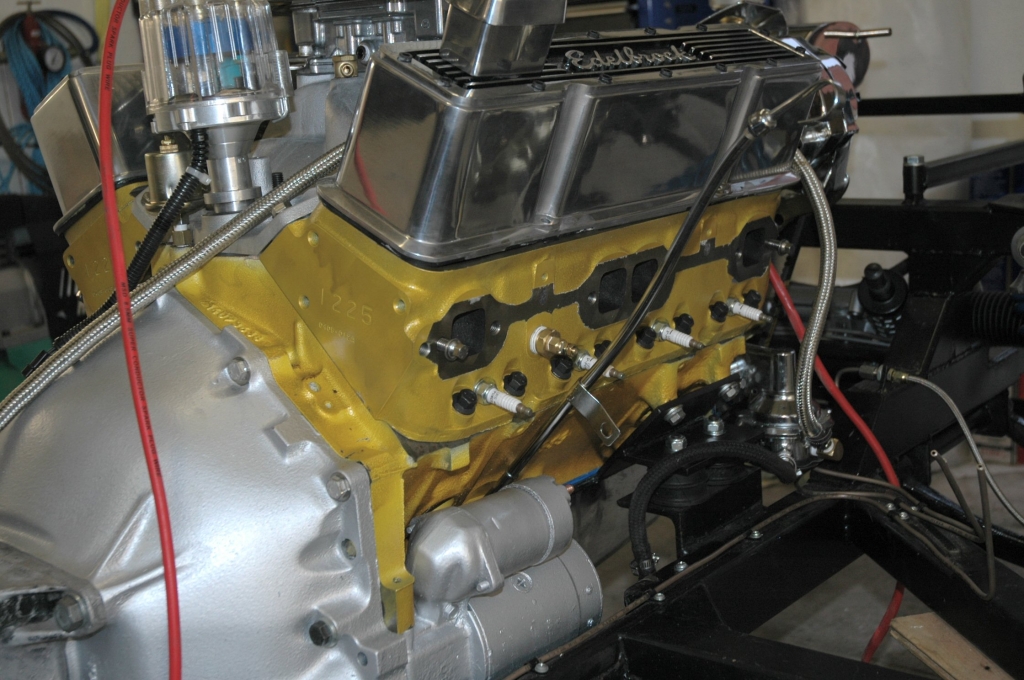

Polished chrome alternator installed, spark plus
Gearbox bolted on

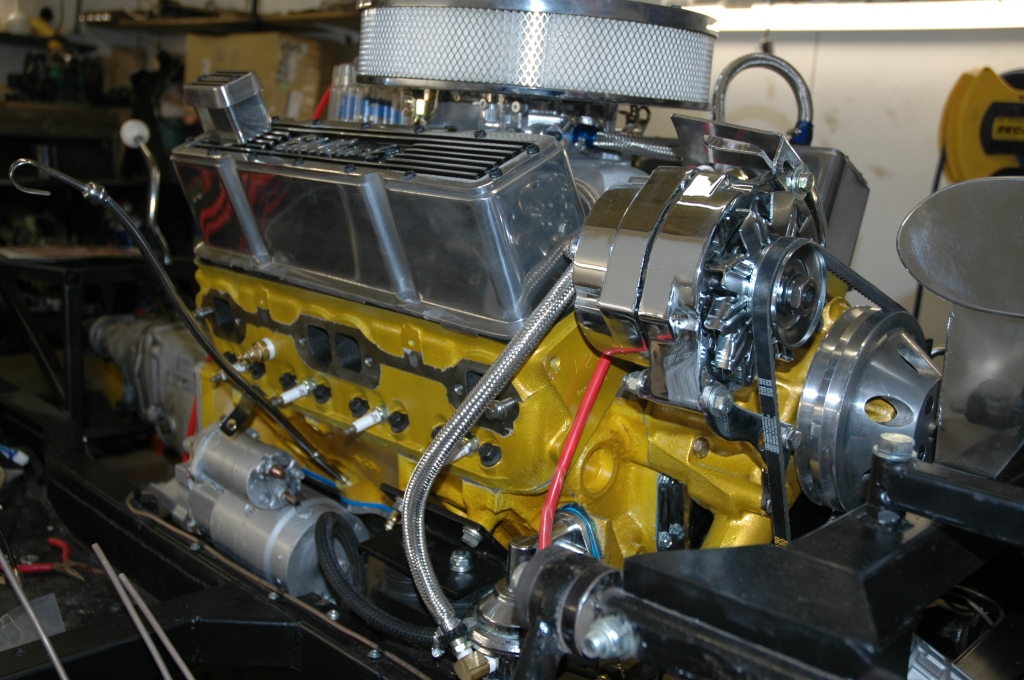

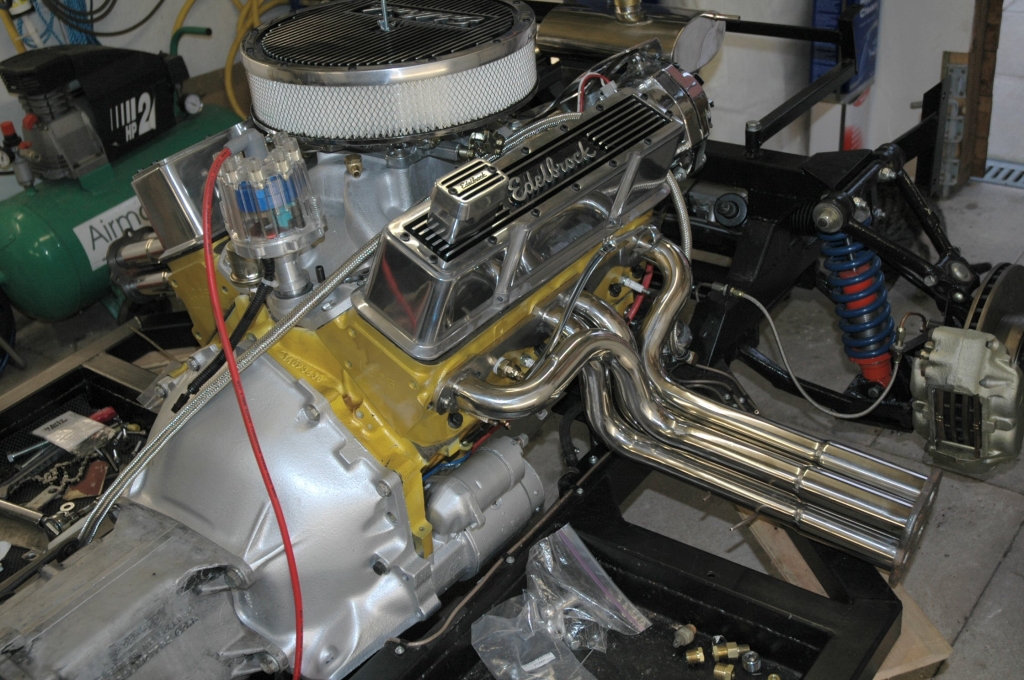

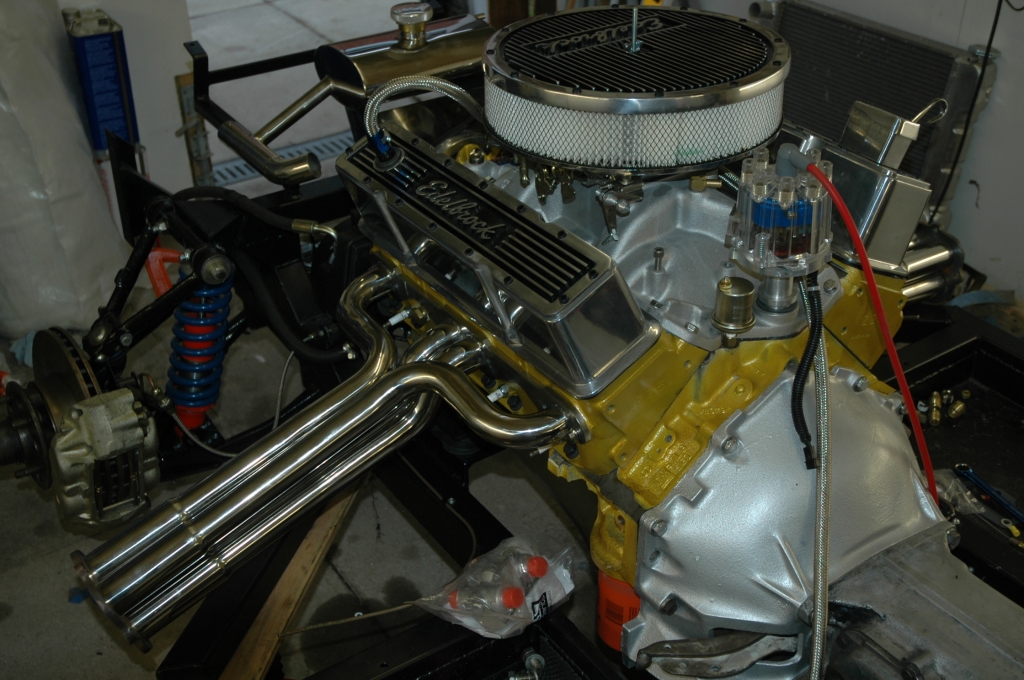

Mounted in the car. Polished stainless custom exhaust headers
Mounted in the car
